    Axial-Type Snubber Capacitors Especially Used For IGBT
    Phone: 0049 - 15736573893
    Inquiry Now

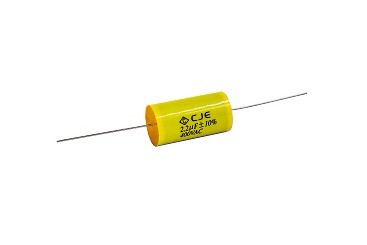

      • Axial-Type Snubber Capacitors Especially Used For IGBT

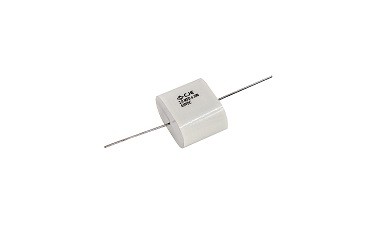

      • Axial-Type Snubber Capacitors Especially Used For IGBT
      • Axial-Type Snubber Capacitors Especially Used For IGBT
    Product Detail

    Snubber Capacitors  Used for IGBT( Axial-type)

    Look at PDF：CX0  IGBT用突波吸收轴向电容器.pdf

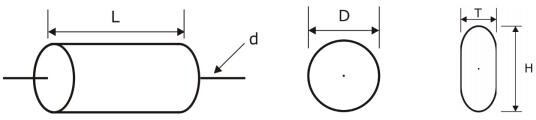

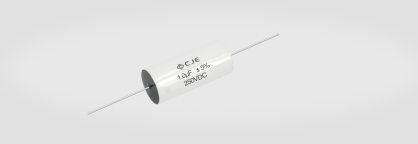

    图片3.png  图片4.png



    Applications

    Suitable for applications in snubber for IGBT.


    Description of products

    Reference standard: GB/T 17702  idt IEC 61071,

    GB/T 2693 idt IEC 60384-1.

    Double sided metallized film, polypropylene dielectric, non-inductive winding.

    Having axial terminals, expediently connected with the circuit.Ø

    Having low ESR and high dv/dt.Ø

    Withstanding very high peak to peak value of current Ipp and high frequency effective value of current Irms.Ø

    Accordance with the customer requirements ,tinned copper wire, copper tab, and various of style of terminals are available.


    Technology Features

    To use double sided metallized film as electrode to enhance property of dv/dt.

    Polyester tape coated, flame-retardant epoxy resin end filled.


    Specifications

    Temperature Range

    -40～+85/105℃ (θhs)

    Capacitance Range

    0.01～4.7μ F

    Capacitance Tolerance ΔC/C

    J：±5%     K：±10%

    Rated Voltage Un

    850～2500Vdc

    Voltage Proof  Between Terminals UTT



    1.6Un ( 60s )

    Insulation Resistance

    ≥10000MΩ ·μ F


    Part  number  system

    ● The 16 digits part number is formed as follow

    1

    2

    3

    4

    5

    6

    7

    8

    9

    10

    11

    12

    13

    14

    15

    16

    C

    X

    0

           Digit 1 to 3                               Series code

                                                           CX0



           Digit 4 to 6                               Rated voltage

                                                           163=101×63V=630V



            Digit 7                                      AC/DC

                                                            A=AC   D=DC



             Digit 8 to 10                            Rated capacitance value

                                                            310=103×10pF=0.01μF



             Digit 11                                   Capacitance tolerance

                                                            J=±5%, K=±10%



              Digit 12 to 16                          Internal use



    ● Technical data （mm)

    Un

    US

    CN

    Axial

    Axial flat

    ESR

    dv/dt

    Ipp

    Irms

    Part Number

    L

    D

    L

    H

    T

    (Vdc)

    (V)

    µF

    (mm)

    (mm)

    mΩ

    V/μs

    (A)

    (A)

    850

    1200

    0.1

    27

    12

    27

    13.5

    9.5

    11

    1000

    100

    4

    CX0185D410*1****

    1200

    0.1

    32

    10

    32

    12

    7

    12

    700

    70

    4

    CX0185D410*2****

    1200

    0.15

    27

    14

    27

    15.5

    11.5

    8

    1000

    150

    5.5

    CX0185D415*1****

    1200

    0.15

    32

    12

    32

    14

    9

    9

    700

    105

    5.5
